Please Contact Us for more information

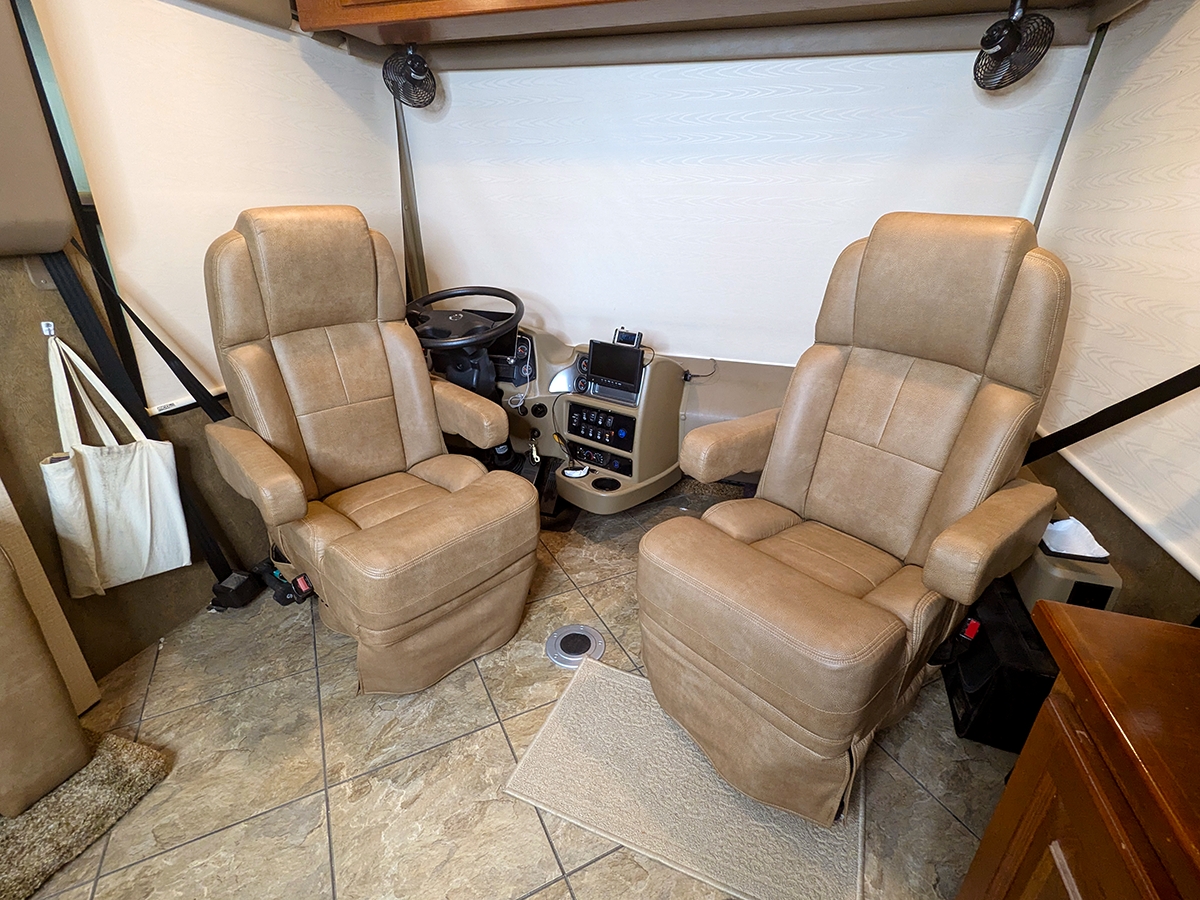

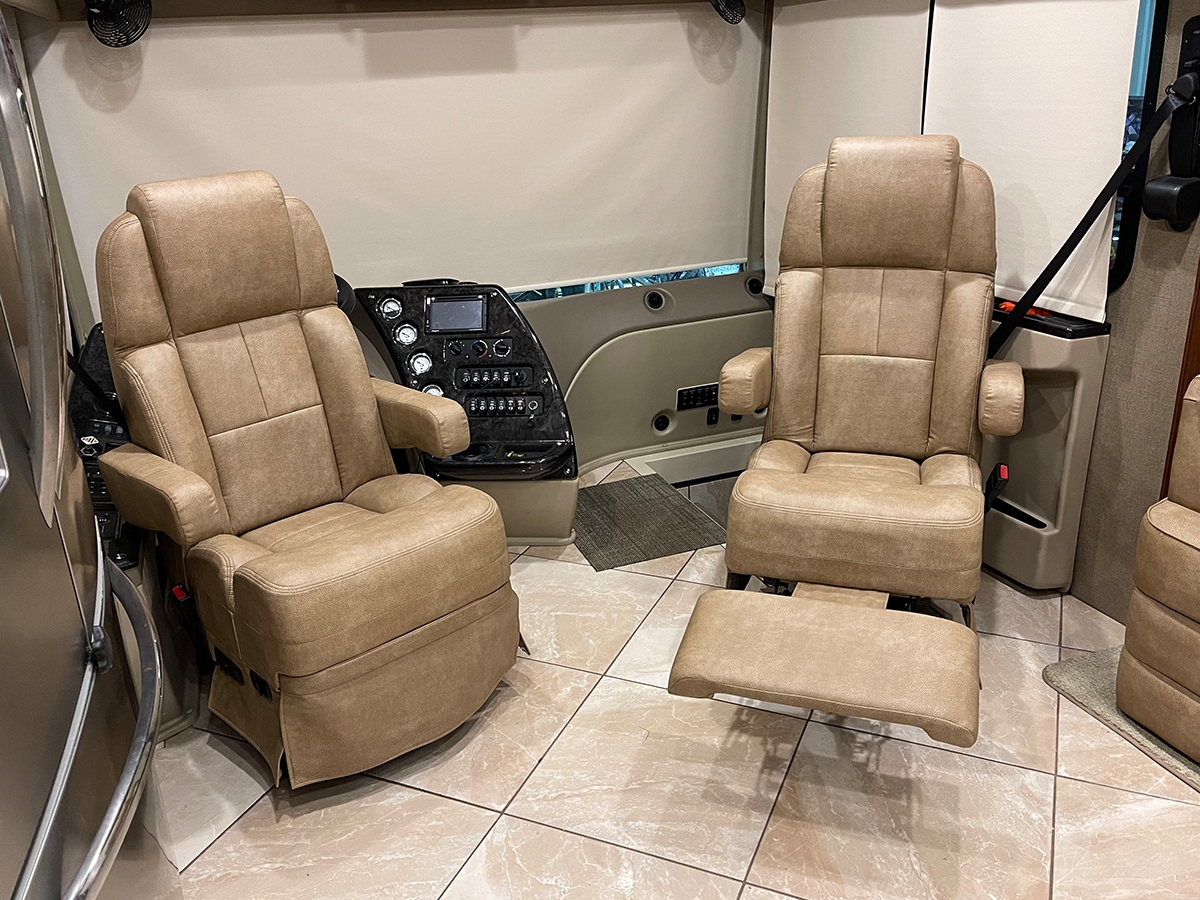

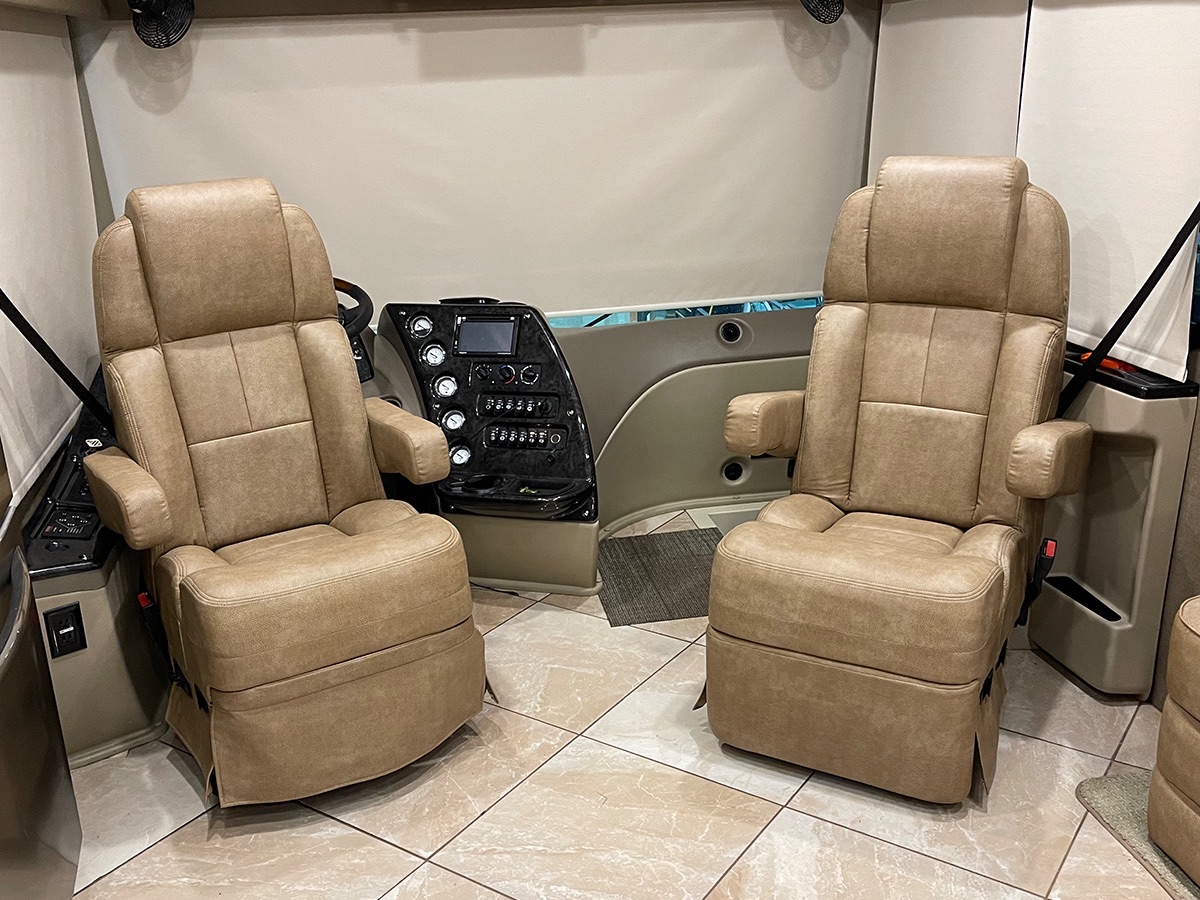

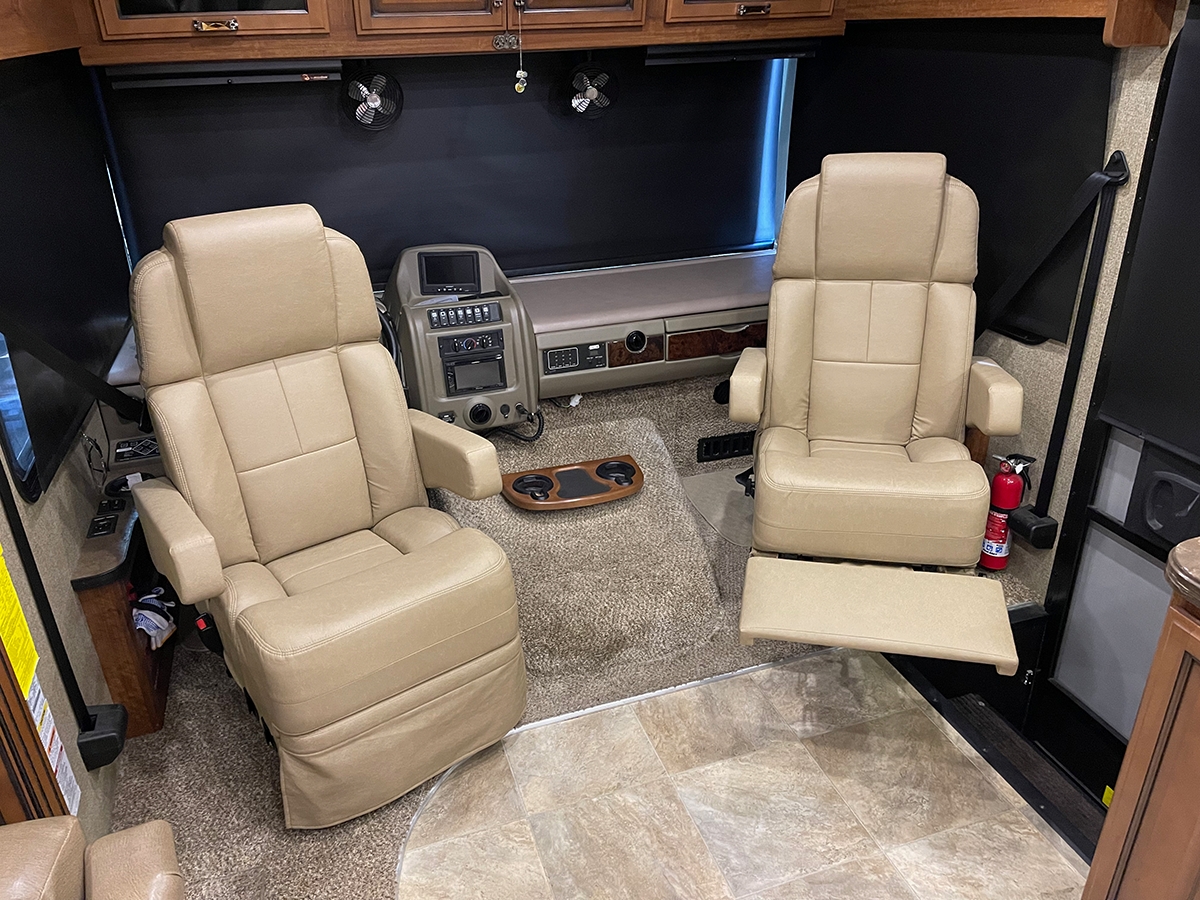

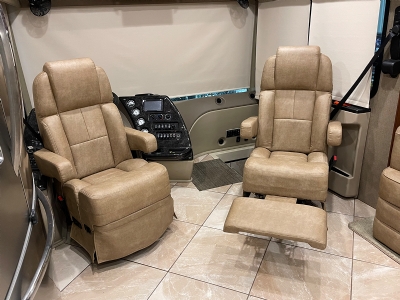

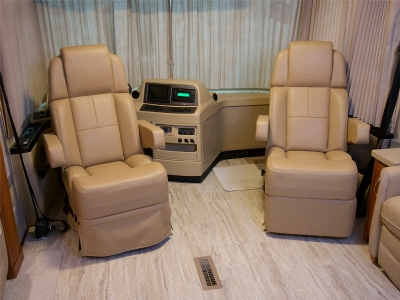

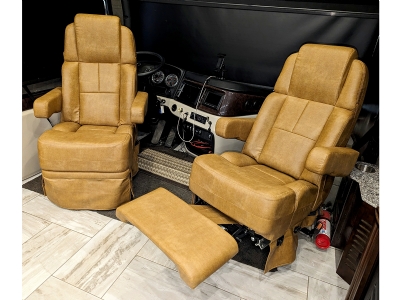

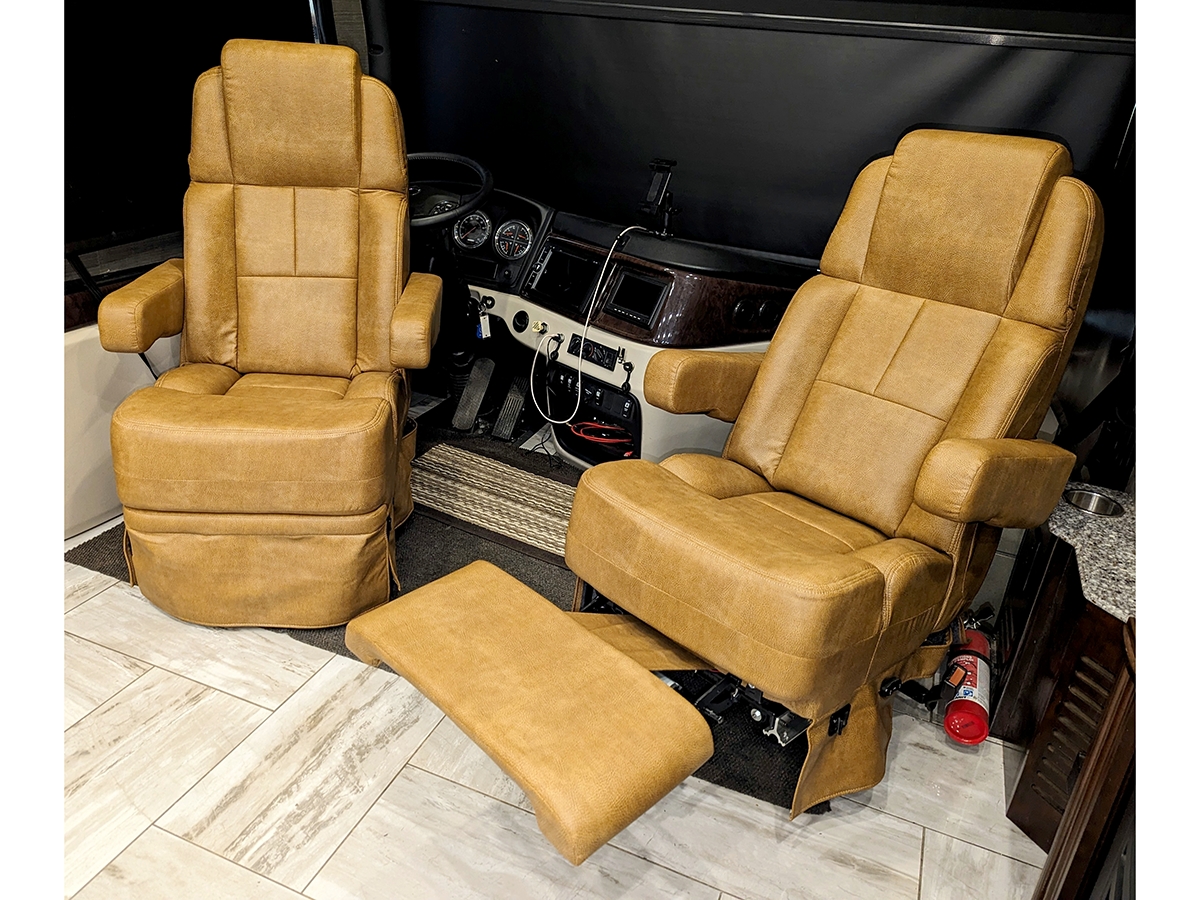

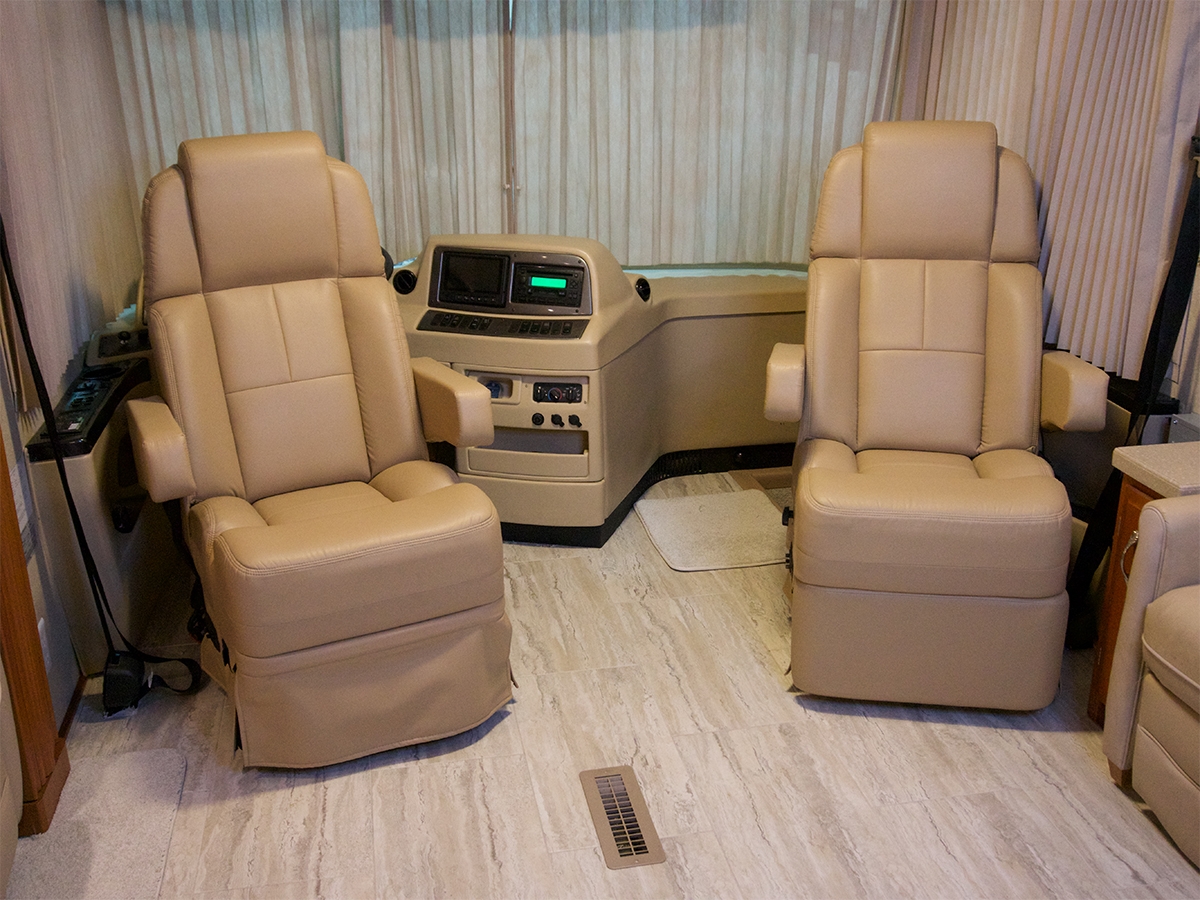

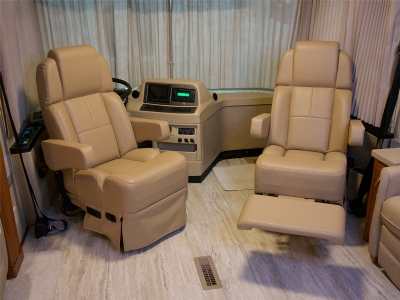

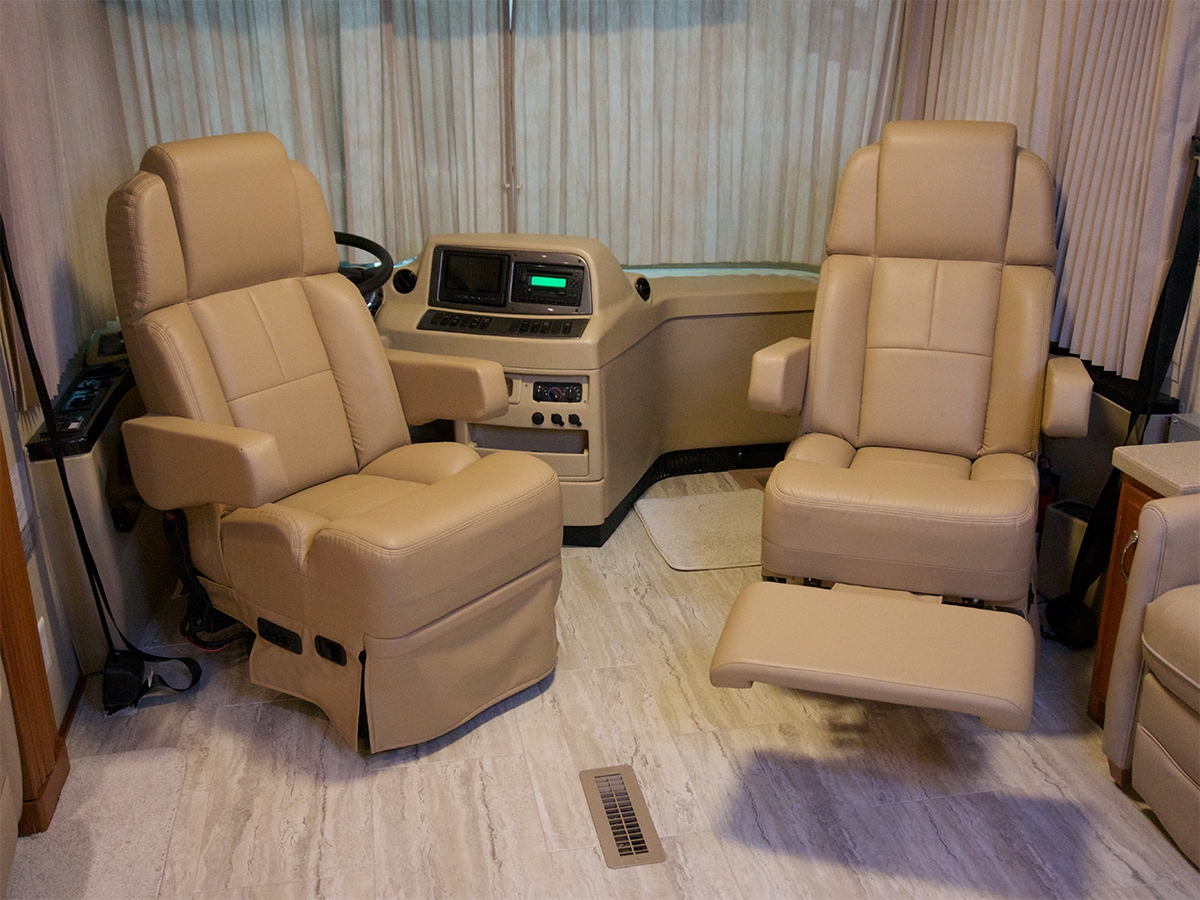

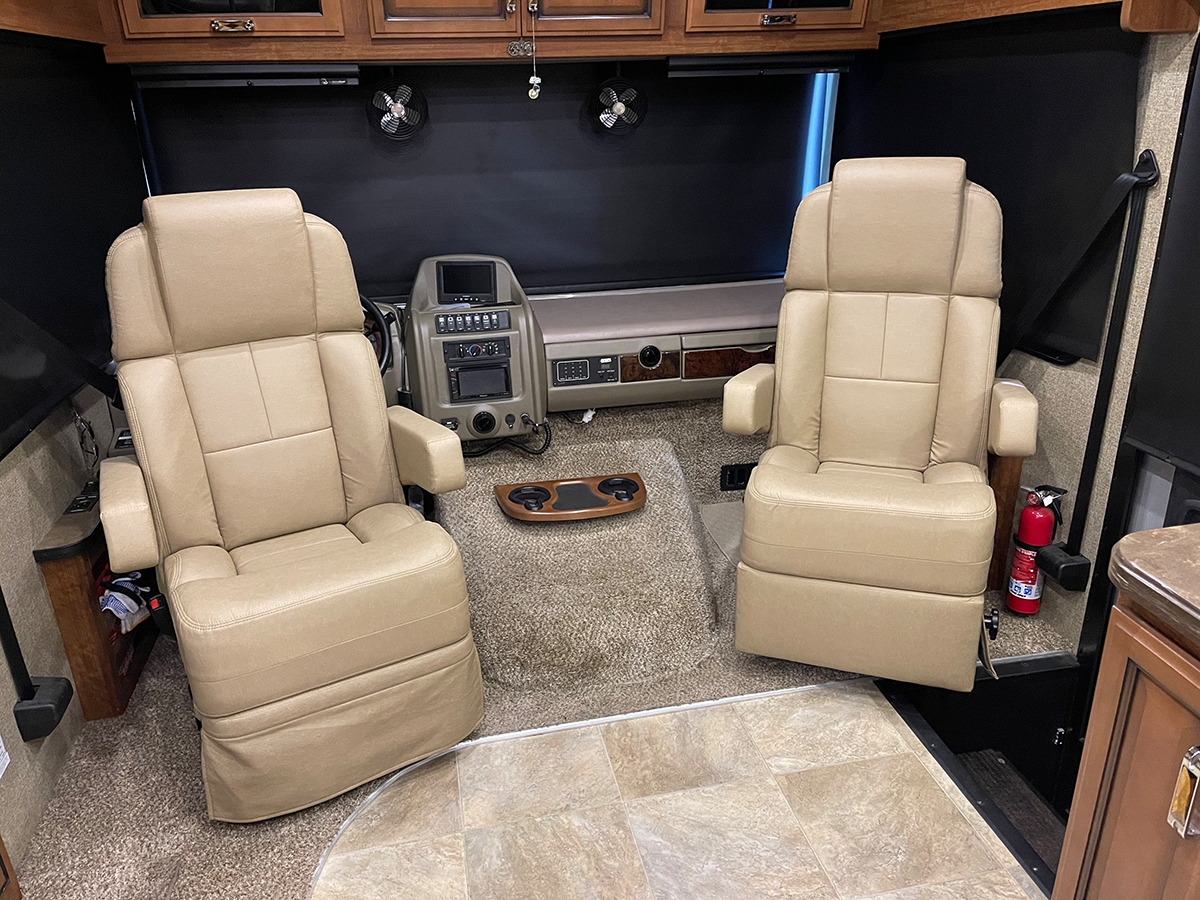

These Chairs are Great for Class A Gas Units and Diesel Pushers.
*Seats come with 2 sets of Standard Bolt Hole Patterns on Bottom of Frame
for Mounting existing Manual Slide Tracks and 6 way Power Slides
8" Side to Side x 11.5" Front to Back Mounting Holes
14" Side to Side x 11.5" Front to Back Mounting Holes

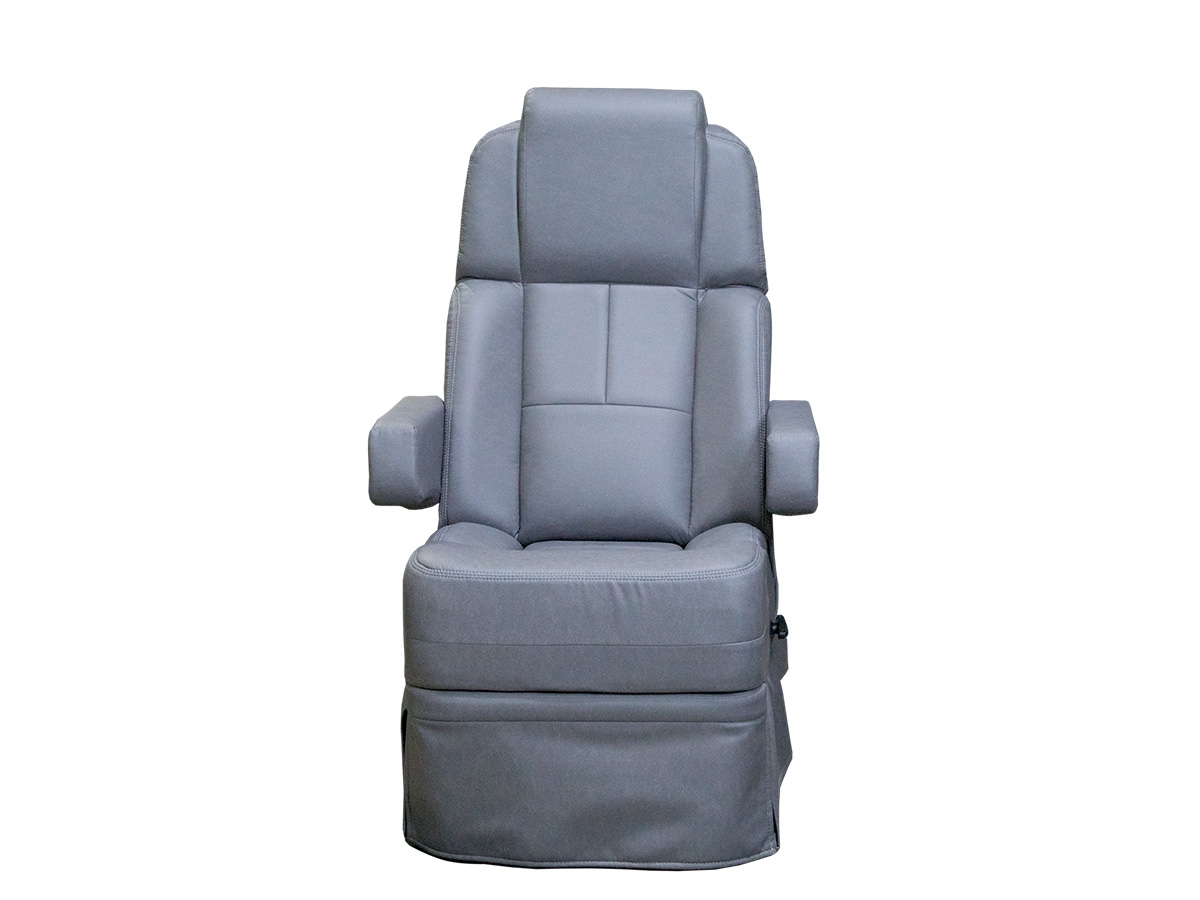

Dimensions:
27" W Outside of Arms
38" H Without Pedestal
27" D at Bottom of Base (with seat back slightly reclined)
25" D at bottom of Base Straight up and down
20" Seat Depth
30" Seat Back Height
21" Seat Base Width
9" Seat Base Thickness
